ATR464

Advanced Temperature Profile Control

• Features
• UL, CE.
• Temperature Profiles: Up to 15
• Steps Up to 30 per profile (max duration per step: 99.59 hh.mm)
• Control Algorithms: ON-OFF with hysteresis, P, PI, PID, PD time proportional
• Tuning Manual or automatic
• Alarm Modes: Absolute/Threshold, Band, High/Low deviation, optional Manual reset, Loop Break Alarm
• Dual PID: Heating/Cooling with dual PID
• Open/Close Logics: For motorized valves
• Software Parameter Configuration: Via MyPixsysLab software or MyPixsys App
• Data Protection: Lock of profiles, password-protected access to parameters

• Buy Online

• Datasheet

• PID and Temperature Controllers

• Manual

---

Advanced Temperature Profile Controller

The ATR464 is a dedicated temperature controller designed for the automation of industrial and laboratory ovens, dryers, heat treatment systems, and processes involving temperature profiles with time-based control. It allows for the programming of 15 temperature profiles, each accommodating up to 30 user-configurable steps (ramp/soak/cooling).

Advanced Software Functions

The ATR464 integrates essential software functions for oven and furnace management, such as:

• Waiting Adjusts for process delays relative to the programmed setpoint.
• Cycle Recovery Mode: Automatically resumes operation after a power failure.
• Special Gas Kiln Functions: Code -15ABC for specific management needs.

User-Friendly Interface

Like other Pixsys controllers, the ATR464 is designed for ease of use, even for inexperienced operators. It supports parameter configuration and profile programming through:

• MyPixsys App: NFC/RFID technology on smartphones.
• MyPixsysLab Software: For PC.
• Direct Keyboard Input.

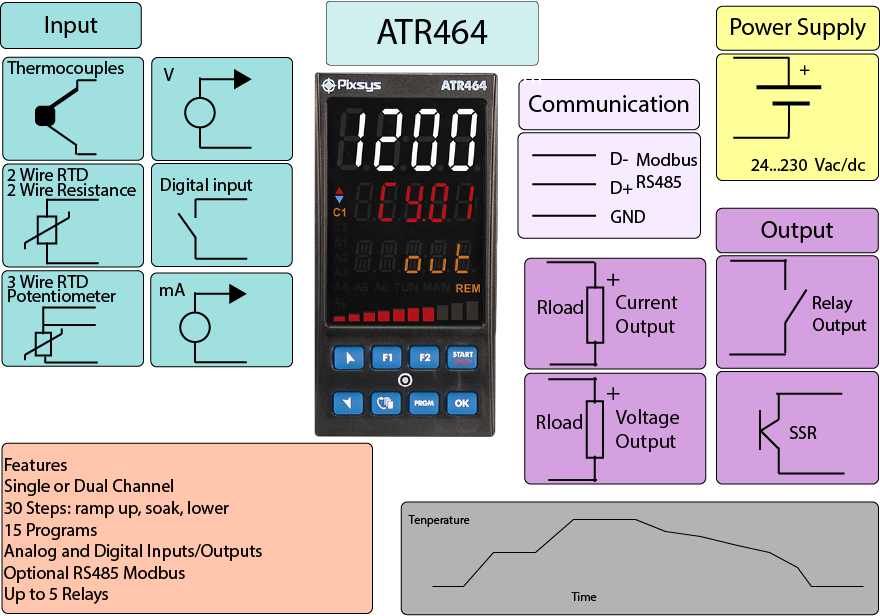

ATR464 Wiring Connections

Power Supply	ATR464-15ABC	ATR464-24ABC-T
Positive	Terminal 1	Terminal 1
Negative	Terminal 2	Terminal 2
Output
Current and Voltage
Positive	Terminal 14	Terminal 34
Negative	Terminal 15	Terminal 35
Positive Channel 2		Terminal 34
Negative Channel 2		Terminal 35
Relay 1
Normally Closed	Terminal 5	Terminal 5
Common	Terminal 9	Terminal 9
Normally Open	Terminal 4	Terminal 4
Relay 2
Normally Closed	Terminal 8	Terminal 8
Common	Terminal 9	Terminal 9
Normally Open	Terminal 7	Terminal 7
Relay 3
Common	Terminal 11	Terminal 11
Normally Open	Terminal 10	Terminal 10
Relay 4
Common	Terminal 13	Terminal 13
Normally Open	Terminal 12	Terminal 12
Relay 5
Common	Terminal 15
Normally Open	Terminal 14
Modbus RS485		Negative 28
		Positive 27
SSR Output 1	Negative 20	Negative 20
	Positive 21	Positive 21
SSR Output 2	Negative 20	Negative 20
	Positive 22	Positive 22
Sensor Input 1
Current	Positive 16	Positive 16
	Negative 17	Negative 17
Voltage	Positive 16	Positive 16
	Negative 17	Negative 17
Thermocouples	Positive 16	Positive 16
	Negative 17	Negative 17
Thermistor	Terminal 17	Terminal 17
	Terminal 18	Terminal 18
3 Wire RTD	Terminal 16	Terminal 16
	Terminal 18	Terminal 18
Wiper	Terminal 17	Terminal 17
Potentiometer	Terminal 16	Terminal 16
	Terminal 18	Terminal 18
Wiper	Terminal 17	Terminal 17
Sensor Input 2
Current		Positive 29
		Negative 30
Voltage		Positive 29
		Negative 30
Thermocouples		Positive 29
		Negative 30
Thermistor		Terminal 30
		Terminal 31
3 Wire RTD		Terminal 29
		Terminal 31
Wiper		Terminal 30
Linear Potentiometer		Terminal 30
		Terminal 31
Digital Input DI1	Terminal 20	Terminal 20
	Terminal 23	Terminal 23
Digital Input DI2	Terminal 20	Terminal 20
	Terminal 24	Terminal 24
Digital Input DI3	Terminal 20	Terminal 20
	Terminal 24	Terminal 24
Digital Input DI4	Terminal 20	Terminal 20
	Terminal 26	Terminal 26

ATR464-15ABC

One Analog input, Four Digital inputs Five Relay Outputs, Two Digital PNP Solid State relay. Power Supply 24 to 230 V ac/dc

---

ATR464-24ABC-T

Two Analog inputs, Modbus RS485, Two Analog output, Four Digital inputs, Four Relay Outputs, Two digital PNP Solid State relay outputs. Power Supply 24 to 230 V ac/dc

---
