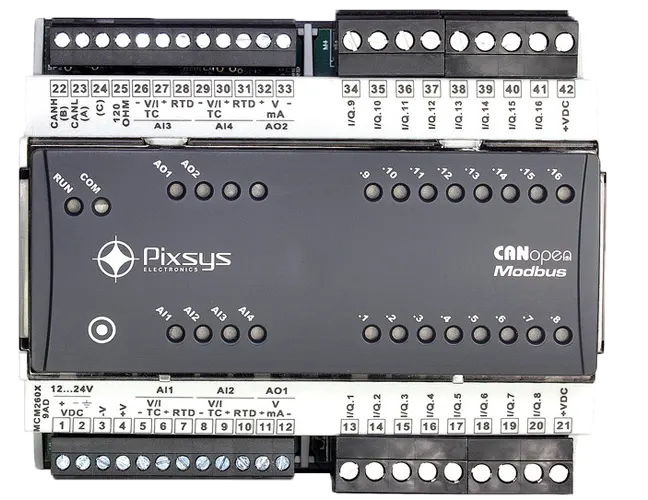

MCM260X-9AD

Modbus, CANbus to Analog and Digital IO
  • Features
    • Thermocouple Inputs
    • 4-20mA Inputs
    • 0-10V Inputs
    • RTD Inputs
    • Potentiometer Inputs
    • 4-20mA Output
    • 0-10V Output
    • 16 Digital Inputs or Outputs
    • CANopen or Modbus DIP Switch Selectable
    • RS485



Modbus, CANbus to Analog and Digital IO

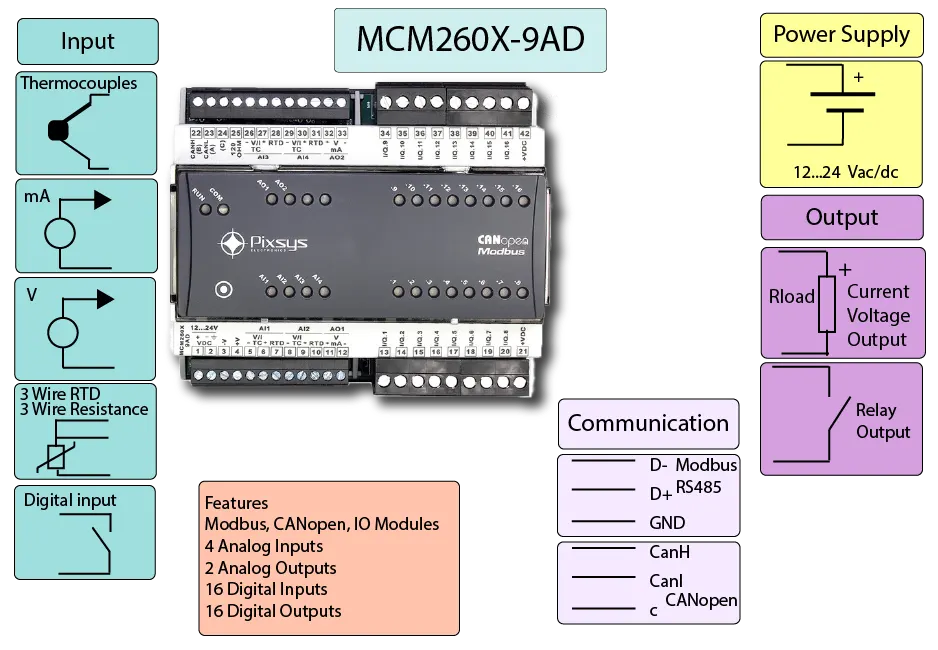

Modbus and CANbus Analog and Digital IO infographics

Unlock Enhanced Control and Connectivity with the MCM260X-9AD Analog and Digital Converter.

Experience seamless integration of analog and digital signals into Modbus or CANopen protocols with the MCM260X-9AD converter. Boasting unparalleled versatility and precision, this device empowers your control systems to achieve new levels of performance and adaptability.

Key Features:

Selectable Input Range :
Effortlessly accommodate a diverse range of input sources including thermocouples, 4-20mA, 0-10V, RTD's, potentiometers, and thermistors. Whether it's temperature, voltage, or current, the MCM260X-9AD ensures compatibility with your preferred sensors.
Selectable Output Range:
Choose between 4-20mA or 0-10V output signals to seamlessly interface with various control systems, offering flexibility in voltage or current requirements.
Digital I/O Flexibility:
With 16 digital I/O ports, each configurable as either a digital input or output, the MCM260X-9AD adds a layer of versatility to your setup, enabling precise control over your digital peripherals.
Protocol Selection via DIP Switches:
Easily switch between Modbus or CANopen communication protocols using intuitive DIP switches. Enjoy high-speed data transmission at 115200 baud rate for Modbus and 1 Mbit/sec for CANopen, ensuring efficient and reliable operation.
Wide Range of Supported Inputs:
From thermocouples (K, J, S, R types) and RTD's (Pt100, Pt500, Pt1000, Ni100K) to thermistors (PTC, NTC), 4-20mA, 0-10V, and potentiometers, the MCM260X-9AD supports an extensive array of input signals, providing comprehensive compatibility for diverse applications.
Compact and Mountable Design:
Featuring a compact form factor and DIN rail mounting capability, the MCM260X-9AD is designed for space-efficient installation, making it ideal for both new installations and retrofit projects.

MCM260X-9AD Specifications

Analog Input
Thermocouples K,J, R and S type
Current 0-20mA , 4-20mA.
Voltage 0-1Volt, 0-10Volt.
RTD's Pt100, Pt500, Pt1000, 500Ni.
Thermistors PTC, NTC
Potentiometer 0-6, 1-150 K Ohm.
Analog Output
Current 4-20mA
Voltage 0-10Volts
Power Supply 12...24Vac/Vdc.
Power Consumption 100VA max.
Temperature Range Operative-32°F +113°F -0°C +45°C
Humidity (non condensing) 35-95%.
Housing DIN Rail
Dimensions 3.5" x 2.8" x 2.3", 90 x 71 x 58 mm
Weight 14 oz 460 g
EMC For industrial environments.
Immunity: EN 61000-6-2.
Emission: EN 61000-6-4.
Configuration PC Configurable, USB.

MCM260X-9AD Wiring Connections

Power Supply
Positive 12...24Vdc Terminal 1
Negative Terminal 2
Input Analog Input 1Analog Input 2Analog Input 3Analog Input 4
Thermocouple + Terminal 6 Terminal 9 Terminal 27 Terminal 30
Thermocouple - Terminal 5 Terminal 8 Terminal 26 Terminal 29
RTD Leg 1 Terminal 5 Terminal 8 Terminal 26 Terminal 29
RTD Leg 2 Terminal 6 Terminal 9 Terminal 27 Terminal 30
RTD Common Terminal 7 Terminal 10 Terminal 28 Terminal 31
Thermistor Leg 1 Terminal 5 Terminal 8 Terminal 26 Terminal 29
Thermistor Leg 2 Terminal 7 Terminal 10 Terminal 28 Terminal 31
mA and Voltage Input + Terminal 5 Terminal 9 Terminal 27 Terminal 30
mA and Voltage Input - Terminal 5 Terminal 8 Terminal 26 Terminal 29
Analog Output Analog Output 1Analog Output 2
Positive Terminal 11 Terminal 32
Negative Terminal 12 Terminal 33
Digital Inputs/Outputs
Input/Output 1 Terminal 21 Terminal 13
Input/Output 2 Terminal 21 Terminal 14
Input/Output 3 Terminal 21 Terminal 15
Input/Output 4 Terminal 21 Terminal 16
Input/Output 5 Terminal 21 Terminal 17
Input/Output 6 Terminal 21 Terminal 18
Input/Output 7 Terminal 21 Terminal 19
Input/Output 8 Terminal 21 Terminal 20
Input/Output 9 Terminal 42 Terminal 34
Input/Output 10 Terminal 42 Terminal 35
Input/Output 11 Terminal 42 Terminal 36
Input/Output 12 Terminal 42 Terminal 37
Input/Output 13 Terminal 42 Terminal 38
Input/Output 14 Terminal 42 Terminal 39
Input/Output 15 Terminal 42 Terminal 40
Input/Output 16 Terminal 42 Terminal 41

MCM260X-9AD Wiring Layout

Modbus and CANbus Analog and Digital IO wiring diagram

Enhance your control system's capabilities with the multipurpose MCM260X-9AD. With options for Modbus or CANbus protocols, as well as versatile analog and digital inputs and outputs, the MCM260X-9AD offers unparalleled flexibility to meet your specific control system requirements.

What is the MCM260X-9AD?

The MCM260X-9AD is a compact analog and digital I/O converter that bridges sensors and signals to Modbus or CANopen networks. It combines analog acquisition/retransmission with discrete I/O in one DIN rail mounted module.

How many analog inputs and outputs does it have?

The module provides 4 analog inputs and 2 analog outputs for flexible signal acquisition and retransmission.

Which analog input types are supported?

Selectable inputs include thermocouples (K, J, S, R), RTDs (Pt100, Pt500, Pt1000, Ni100K), thermistors (NTC, PTC), 4–20 mA, 0–10 V, and potentiometers.

What analog output options are available?

The analog outputs are selectable between 4–20 mA and 0–10 V to interface with a wide range of control systems.

How many digital inputs and outputs are available?

The MCM260X-9AD includes 16 digital inputs and 16 digital outputs. LEDs indicate the status of each digital channel to aid commissioning and troubleshooting.

Which communication protocols and speeds are supported?

As a Modbus slave it operates up to 115200 baud; as a CANopen device it operates up to 1 Mbit/s.

How do I switch between Modbus and CANopen?

Protocol selection is performed via on-board DIP switches—no special tools are required. You can purchase for one protocol and later switch if needed.

How is the MCM260X-9AD installed?

The unit is small in size and designed for standard DIN rail mounting, making it suitable for dense control panels and retrofit projects.

Where is the MCM260X-9AD typically used?

Common applications include PLC/SCADA expansions, mixed analog/digital signal acquisition, and systems needing protocol flexibility between Modbus and CANopen.
