MCM260X-5AD

Modbus and CANbus to Analog IO
  • Features
    • Thermocouple Inputs
    • 4-20mA Inputs
    • 0-10V Inputs
    • RTD Inputs
    • Potentiometer Inputs
    • 4-20mA Output
    • 0-10V Output
    • CANopen or Modbus DIP Switch Selectable
    • RS485



Modbus and CANbus to Analog IO

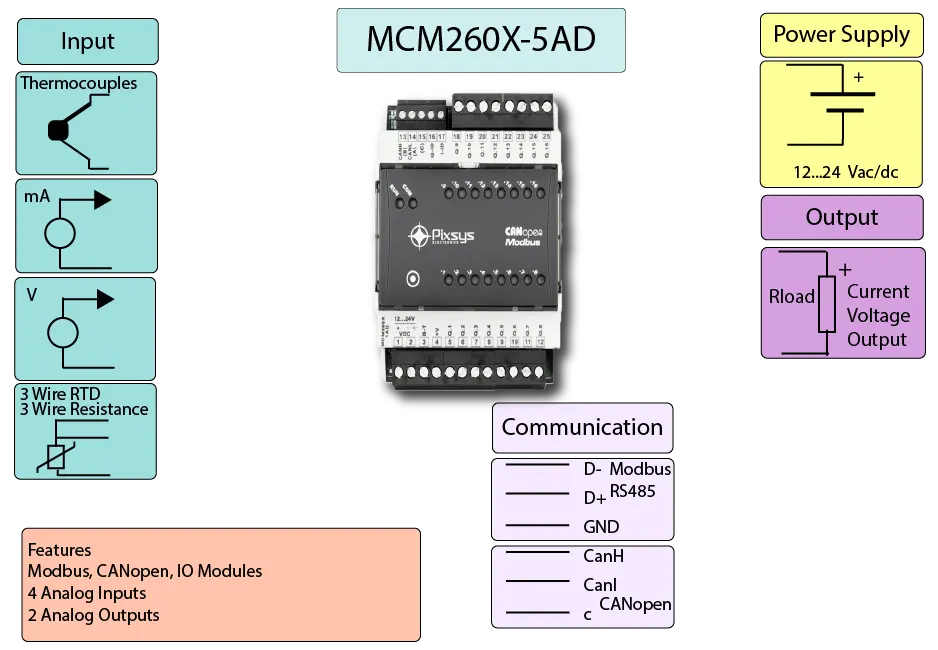

Modbus and CANbus to Analog IO Infographics

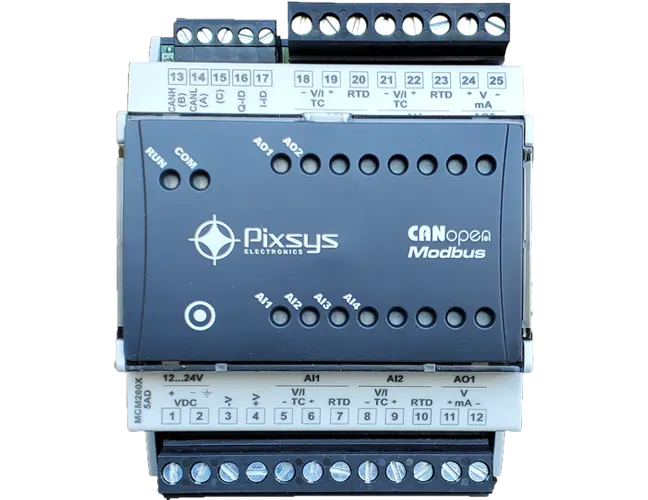

The MCM260X-5AD is an Analog to Modbus or CANbus converter. The input is selectable from thermocouples, 4-20mA, 0-10V, RTD's, potentiometers or thermistors. The output is selectable between 4-20mA or 0-10V output. With the DIP switches either Modbus or CANbus is selectable and is able to operate at a speed of 57500 baud rate as a Modbus slave and 1 Mbit/sec on the CANopen. The input is selectable from K type thermocouple, J type thermocouple, S type thermocouple, R type thermocouple, Pt100, Pt500, Pt1000, Ni100K RTD's. PTC, NTC thermistor. 0-20mA , 4-20mA. 0-1 V, 0-10V and potentiometers. The MCM260X-5AD is small in size and is DIN rail mounted.

MCM260X-5AD Specifications

Analog Input
Thermocouples K,J, R and S type
Current 0-20mA , 4-20mA.
Voltage 0-1Volt, 0-10Volt.
RTD's Pt100, Pt500, Pt1000, 500Ni.
Thermistors PTC, NTC
Potentiometer 0-6, 1-150 K Ohm.
Analog Output
Current 4-20mA
Voltage 0-10Volts
Power Supply 12...24Vac/Vdc.
Power Consumption 20VA max.
Temperature Range Operative-32°F +113°F -0°C +45°C
Humidity (non condensing) 35-95%.
Housing DIN Rail
Dimensions 3.5" x 2.8" x 2.3", 90 x 71 x 58 mm
Weight 14 oz 460 g
EMC For industrial environments.
Immunity: EN 61000-6-2.
Emission: EN 61000-6-4.
Configuration PC Configurable, USB.

MCM260X-5AD Wiring Connections

Power Supply
Positive 12...24Vdc Terminal 1
Negative Terminal 2
Input Analog Input 1Analog Input 2Analog Input 3Analog Input 4
Thermocouple + Terminal 5 Terminal 8 Terminal 18 Terminal 21
Thermocouple - Terminal 6 Terminal 9 Terminal 19 Terminal 22
RTD Leg 1 Terminal 5 Terminal 10 Terminal 18 Terminal 21
RTD Leg 2 Terminal 6 Terminal 9 Terminal 19 Terminal 22
RTD Common Terminal 7 Terminal 10 Terminal 20 Terminal 23
Thermistor Leg 1 Terminal 5 Terminal 8 Terminal 18 Terminal 21
Thermistor Leg 2 Terminal 7 Terminal 10 Terminal 20 Terminal 23
mA and Voltage Input + Terminal 5 Terminal 8 Terminal 18 Terminal 21
mA and Voltage Input - Terminal 7 Terminal 10 Terminal 20 Terminal 23
Potentiometer Leg 1 Terminal 5 Terminal 8 Terminal 18 Terminal 21
Potentiometer Leg 2 Terminal 7 Terminal 10 Terminal 20 Terminal 26
Analog Output Analog Output 1Analog Output 2
Positive Terminal 11 Terminal 24
Negative Terminal 12 Terminal 25

MCM260X-5AD

Modbus and CANbus to Analog IO wiring diagram
What is the MCM260X-5AD?

The MCM260X-5AD is a compact analog I/O converter that bridges sensors to Modbus or CANopen networks. It provides four analog input channels and two analog outputs in a DIN rail–mounted module.

How many analog inputs does it have and what signals are supported?

The module has 4 analog inputs selectable for thermocouples, RTDs, thermistors, current (0–20 mA, 4–20 mA,), voltage (0–1 V, 0–5 V, 0–10 V, 0-60mV), and potentiometers.

Which thermocouple and RTD types are supported?

Supported thermocouples include K, J, S, and R. Supported RTDs include Pt100, Pt500, Pt1000, and Ni100K. Thermistor types include NTC and PTC.

What analog output options are available?

The MCM260X-5AD provides 2 analog outputs selectable between 4–20 mA and 0–10 V for retransmission or control.

Which communication protocols and speeds are supported?

The device operates as a Modbus slave (up to 57,600 baud) or as a CANopen device (up to 1 Mbit/s).

How do I switch between Modbus and CANopen?

Protocol selection is performed via on-board DIP switches—no special tools are required. You can purchase for one protocol and later switch if needed.

How is the MCM260X-5AD installed?

The unit is small in size and designed for standard DIN rail mounting, enabling high-density panel installations.

Where is the MCM260X-5AD typically used?

Common applications include PLC/SCADA expansions, mixed-signal acquisition and retransmission, and systems requiring protocol flexibility between Modbus and CANopen.
