ATEX Head Mount RTD Data Logger

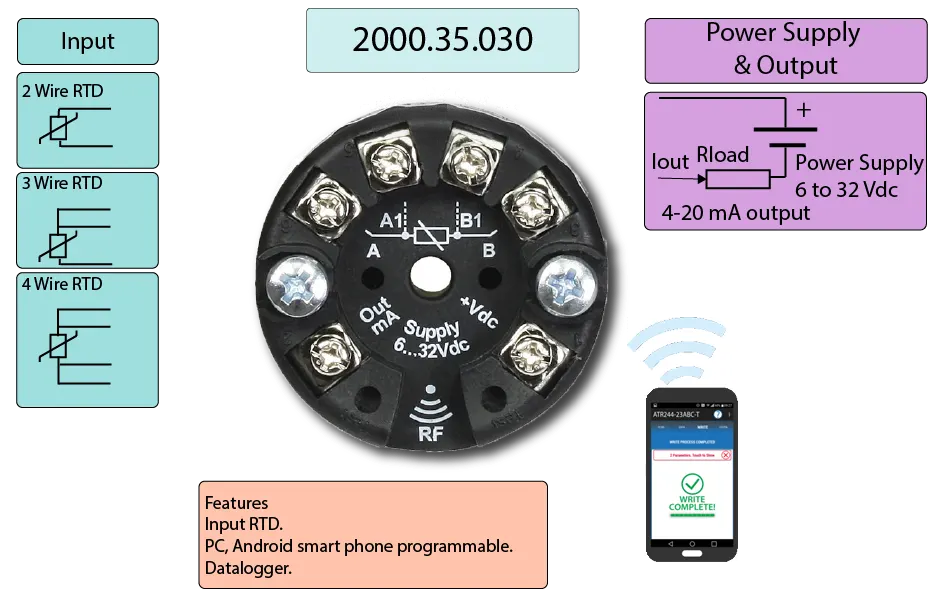

The 2000.35.030 is an ATEX approved head mounted RTD temperature transmitter that can accept a signal from an RTD PT100, PT1000 or a NI100 with 2 , 3 or 4 wires and then convert the signal to a 4-20mA output. The 2000.35.030 has the ability to store a temperature measurement from once a second up to every one hour. The datalogger can be set up with a PC, Android phone and with the use of a bluetooth programmer, an iPhone.
The head mounted RTD temperature transmitter accepts inputs from Pt100, Ni100 and Pt1000 2, 3 and 4 Wire RTD's and provides a 4-20mA output from 6 - 32 Vdc.

2 Wire RTD Wiring Connections

2 Wire RTD Input

3 Wire RTD Wiring Connections

3 Wire RTD Input

4 Wire Wiring Connections

4 Wire RTD Input
