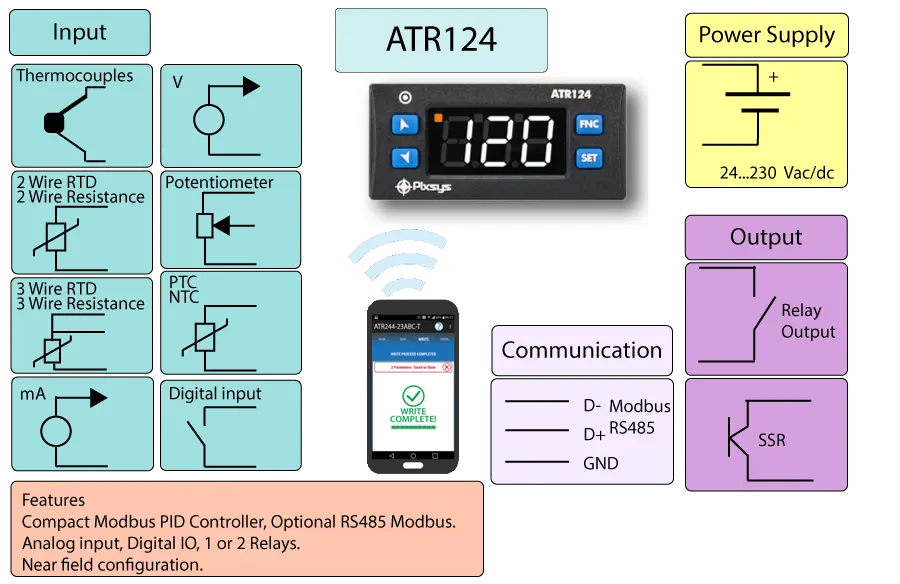

The ATR124 is a compact and versatile PID controller, designed as the entry-level model in the Pixsys Blue Line series. It retains all the key features of the series, including advanced programming via NFC/RFID, making it user-friendly and efficient for various industrial applications.
Compatible with a wide range of temperature probes and process signals (mA and Volt), the ATR124 offers flexibility for diverse industrial environments.
The digital and relay outputs can be set as ON/OFF or full PID control. Multiple alarm modes are available, including threshold, band, and deviation alarms.
Supports optional Modbus RTU over RS485 using the Slave protocol, ensuring smooth integration with networked systems.
The ATR124 accepts 24 to 230 V AC/DC, reducing inventory needs and ensuring performance even with power fluctuations.
With built-in PID algorithms, the ATR124 ensures accurate process control. It supports one or two relay outputs for stable regulation.
Ensures 2500 V isolation between power supply, input, and outputs, protecting equipment from electrical interference.
The high-visibility white LED display offers excellent readability even from a distance, enhancing usability in various lighting conditions.
| Input Type | Range (°F) | Range (°C) |
|---|---|---|
| K Type Thermocouple | -436 to 2480°F | -260 to 1360°C |
| S Type Thermocouple | -40 to 3200°F | -40 to 1760°C |
| R Type Thermocouple | -40 to 3200°F | -40 to 1760°C |
| J Type Thermocouple | -326 to 2192°F | -200 to 1200°C |
| T Type Thermocouple | -436 to 752°F | -260 to 400°C |
| RTD PT100 | -328 to 1112°F | -200 to 600°C |
| Ni100 | -76 to 350°F | -60 to 180°C |
| Ni120 | -76 to 464°F | -60 to 240°C |
| NTC 10kΩ Thermistor | -40 to 257°F | -40 to 125°C |
| NTC 10kΩ Omega | -40 to 302°F | -40 to 150°C |
| NTC 2252Ω Omega | -40 to 302°F | -40 to 150°C |
| PTC 1kΩ Thermistor | -58 to 302°F | -50 to 150°C |
| PT500 | -326 to 1112°F | -200 to 600°C |
| PT1000 | -326 to 1112°F | -200 to 600°C |
| Voltage Input | 0 to 1V | — |
| Voltage Input | 0 to 5V | — |
| Voltage Input | 0 to 10V | — |
| Current Input | 0 to 20mA | 4 to 20mA |
| Millivolt Input | 0 to 60mV | — |
| Potentiometer | 1kΩ to 6kΩ | 1kΩ to 150kΩ |
| Digital Input | 1 x PNP | — |
| Output | 2 or 3 x Relay (8A), SSR | — |
| Power Supply | 24 to 230V AC/DC Optional 12 V AC/DC | — |
| Power Consumption | 8 VA max | — |
| Operating Temperature | -32 to +113°F | 0 to +45°C |
| Humidity | 35% to 95% RH (non-condensing) | — |
| Housing Material | Polycarbonate UL94V-2 (self-extinguishing) | — |
| Dimensions | 1.25" x 2.9" x 2.12" (32 x 74 x 54 mm) | — |
| Weight | 4 oz (120 g) | — |
| EMC Compliance | Industrial environment | — |
| Immunity: EN 61000-6-2 | — | |
| Emission: EN 61000-6-4 | — | |
| Configuration Options | NFC, RFID, PC software, Memory card | — |
| Power Supply | ATR124-ABC | ATR124-ABC-T |
| ATR124-AD | ATR124-AD-T | |
| Positive | Terminal 1 | Terminal 1 |
| Negative | Terminal 2 | Terminal 2 |
| Output | ||
| Relay 1 | ||
| Normally Closed | Terminal 3 | Terminal 3 |
| Common | Terminal 4 | Terminal 4 |
| Normally Open | Terminal 5 | Terminal 5 |
| Relay 2 | ||
| Common | Terminal 6 | |
| Normally Open | Terminal 7 | |
| ModBus RS485 | Negative 6 | |
| Positive 7 | ||
| T/C's, Voltage, mA | Positive 12 | Positive 12 |
| Negative 11 | Negative 11 | |
| 12 V Power Supply | Positive 9 | Positive 9 |
| Thermistor | Terminal 10 | Terminal 10 |
| Terminal 11 | Terminal 11 | |
| RTD and Potentiometer | ||
| Wiper | Terminal 11 | Terminal 11 |
| Common | Terminal 11 and 12 | Terminal 11 and 12 |
The ATR124 is a compact Modbus PID controller designed to measure a process variable, compare it to a setpoint, and output a corrective signal to control that variable. It is ideal for precise and automated control in industrial applications.
The ATR124 supports a wide range of input signals, including standard thermocouples, RTDs (e.g., PT100, PT500, PT1000), analog current (0–20 mA, 4–20 mA), voltage (0–10 V DC), thermistors (NTC and PTC), resistive sensors, and potentiometers. This makes it highly adaptable to diverse sensor types.
The ATR124 features an optional RS485 serial port using the Modbus RTU protocol. This allows for remote reading and writing of parameters such as process variables and setpoints. It facilitates seamless integration into SCADA systems and industrial networks.
The ATR124 is used across a wide range of industries including industrial automation, process control, manufacturing, and environmental monitoring. Its versatility, compact design, and communication capabilities make it ideal for OEMs and integrators alike.
Enhance your automation with the ATR124 Modbus-enabled panel meter. Experience improved process efficiency, seamless Modbus integration, and flexible input/output configurations — all in a compact, powerful unit.
The ATR124 represents the next generation of the ATR121 series, offering enhanced functionality and user experience. With advanced control features, a flexible power supply range, and NFC programming, it’s an ideal solution for modern industrial control applications.
