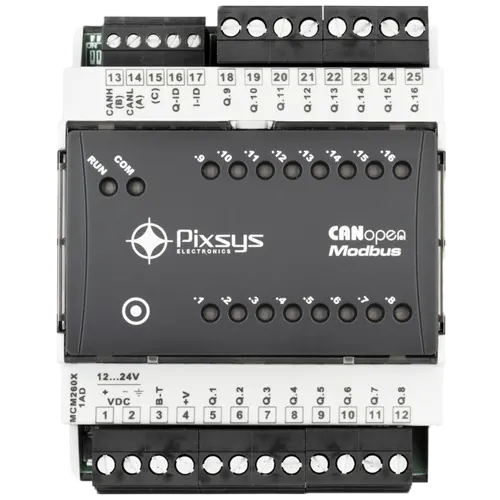

MCM260-1AD

Modbus and CANbus to Digital Output
  • Features
    • 16 Digital Outputs.
    • Switchable between CANopen and Modbus (DIP Switch).
    • Operates at 115,200 Mbit/sec baud rate (Modbus).
    • Operates 1 Mbit/sec (CANopen).
    • 700mA per output
    • Compact design with DIN rail mounting



Modbus and CANopen to 16 Digital Outputs - MCM260X-1AD

Modbus and CANbus to Digital Output

The MCM260-1AD provides 16 digital outputs from either Modbus or CANbus and is able to operate at a speed of 57500 baud rate as a Modbus slave and 1 Mbit/sec on the CANopen. With the aid of DIP switches the MCM260-1AD can be changed from a Modbus device to a CANbus device. LED's indicate the output status for each of the sixteen solid state digital outputs. The output is limited to 700mA.
The MCM260-1AD is small in size and is DIN rail mounted.

The MCM260X-1AD is a versatile device that provides 16 digital outputs and can work seamlessly with both Modbus and CANopen protocols. With a switchable configuration, it can operate as a Modbus slave at 57,500 baud rate or as a CANopen device at 1 Mbit/sec. LED indicators display the status of each solid-state digital output. The MCM260X-1AD is compact and DIN rail mounted, making it suitable for various applications.

MCM260X-1AD Specifications

Output Digital 16 Solid State.
Power Supply 12...24Vac/Vdc.
Power Consumption 100VA max.
Temperature Range Operative-32°F +113°F -0°C +45°C
Humidity (non condensing) 35-95%.
Housing DIN Rail
Dimensions 3.5" x 2.8" x 2.3", 90 x 71 x 58 mm
Weight 14 oz 460 g
EMC For industrial environments.
Immunity: EN 61000-6-2.
Emission: EN 61000-6-4.
Configuration PC Configurable, USB.

MCM260X-1AD Wiring Connections

Power Supply
Positive 12...24Vdc Terminal 1
Negative Terminal 2
Digital Output
Output 1 Terminal 5
Output 2 Terminal 6
Output 3 Terminal 7
Output 4 Terminal 8
Output 5 Terminal 9
Output 6 Terminal 10
Output 7 Terminal 11
Output 8 Terminal 12
Output 9 Terminal 18
Output 10 Terminal 19
Output 11 Terminal 20
Output 12 Terminal 21
Output 13 Terminal 22
Output 14 Terminal 23
Output 15 Terminal 24
Output 16 Terminal 25

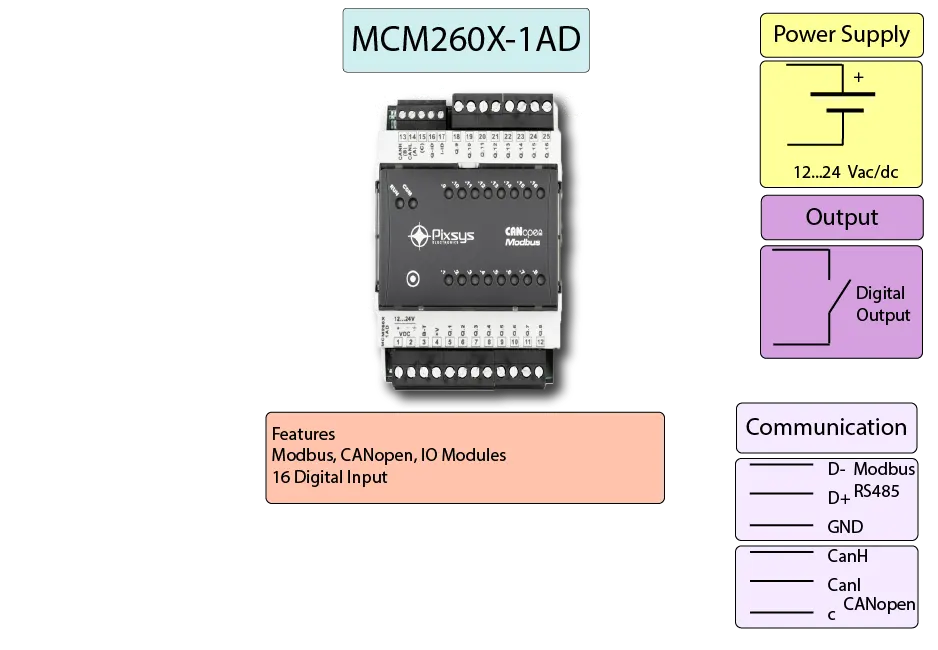

MCM260X-1AD

mcm260x-1ad wiring diagram
What is the MCM260-1AD?

The MCM260-1AD is a compact, DIN rail–mounted module that provides 16 solid-state digital outputs. It can communicate over Modbus or CANopen, making it suitable for a wide range of industrial control applications.

How many outputs does the MCM260-1AD provide and how are they indicated?

The device provides 16 digital outputs. Individual LEDs indicate the status of each output channel for quick diagnostics.

Which communication protocols and speeds are supported?

The MCM260-1AD operates as a Modbus slave at up to 57,500 baud and as a CANopen device at up to 1 Mbit/sec.

How do I switch between Modbus and CANopen?

Protocol selection is done via DIP switches on the device, allowing you to change from Modbus to CANopen and vice versa without special tools.

What is the output current capability?

The outputs are solid-state and the overall output capability is limited to 700 mA. Ensure your load planning stays within this limit.

How is the MCM260-1AD installed?

The module is small in size and designed for DIN rail mounting, enabling high-density panel installations.

What is the MCM260X-1AD?

The MCM260X-1AD is a variant in the same range offering 16 digital outputs with the same core capabilities: Modbus/CANopen operation, switchable via DIP switches, LED output indication, and compact DIN rail mounting.

Where is the MCM260 range typically used?

Common uses include PLC/SCADA expansions, machine I/O marshalling, distributed control panels, and applications requiring protocol flexibility between Modbus and CANopen.
