DRR244

DIN Rail Mount, PID Controller
  • Features
    • High Visibility white LED's
    • DIN Rail Mount PID Controller
    • Cell Phone App Programmable
    • PC Programmable
    • Isolated
    • 3 Relay, 2 SSR.
    • 4-20 mA output
    • Modbus RS485




DIN Rail Mount, PID Controller

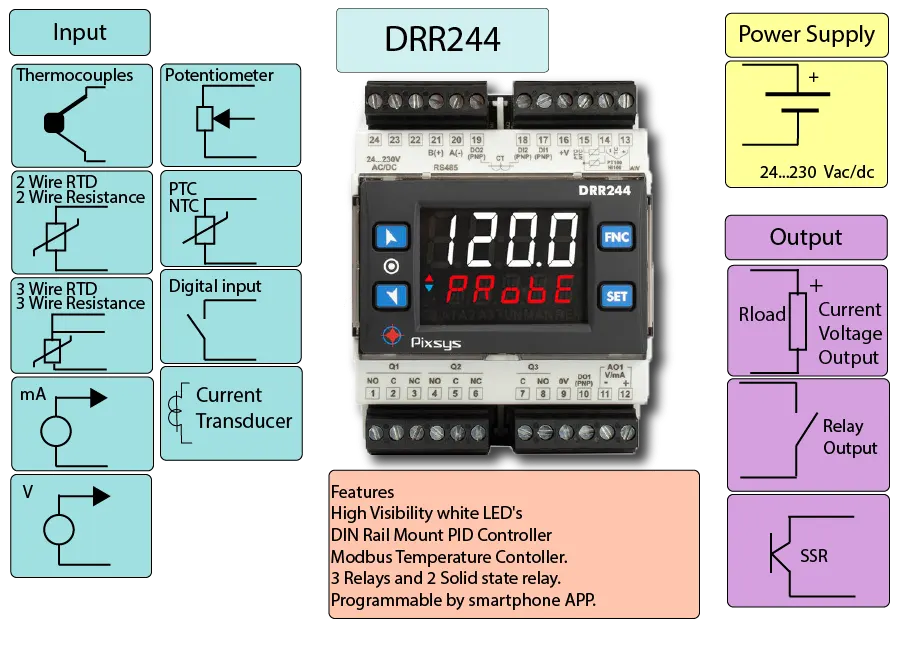

Modbus Temperature Controller Infographics

Elevate Your Control System with the DRR244 DIN-Rail Mounted PID Controller
The DRR244 stands out in the DIN-rail controller segment, combining versatile hardware and advanced software features into a single, comprehensive solution. This space-efficient controller is equipped with a prominent white LED display, providing clear, easy-to-read status updates and text message alerts, ensuring you stay informed at all times.

Key Features:

Ease of Use:

Advanced Control and Communication::

DRR244 Specifications

Input °F °C
Resolution 16 bit.
K type Thermocouple -436 to 2480°F -260 to 1360°C
S type Thermocouple -40 to 3200°F -20 to 1760°C
R type Thermocouple -40 to 3200°F -20 to 1760°C
J type Thermocouple -436 to 2192°F -200 to 1200°C
T Type Thermocouple -436 to 752°F -260 to 400°C
E Type Thermocouple -436 to 1796°F -260 to 980°C
N Type Thermocouple -436 to 2336°F -260 to 1280°C
B Type Thermocouple -328 to 3308°F 100 to 1820°C
RTD PT100 -328 to 1112°F -200 to 600°C
RTD PT500 -328 to 284°F -200 to 140°C
NI 100 -76 to 356°F -60 to 180°C
NTC 10K Ohm Thermistor -40 to 257°F -40 to 125°C
PTC 1K Ohm Thermistor -40 to 302°F -40 to 150°C
PT500 -148 to 1112°F -100 to 600°C
PT1000 -148 to 1112°F -100 to 600°C
Current 4-20 mA 0-20 mA
Voltage 0-5 V 0-10 V
Voltage 0-60 mV 0-1 V
Digital Inputs 2 x PNP
Output
Analog Output 4-20 mA, 0-10 Vdc. Control or retransmission
Relay Output 2 x SPDT 5 A. 1 x SPST 2 A.
Digital Output 2 x SSR. 12/24 VDC, 30 mA max
Communication Modbus RTU. RS485
Power Supply
Power Supply 24-230 V AC/DC ±15%, 50/60 Hz with 2.5KV galvanic isolation.
Power Consumption 9VA max.
Housing and Environmental
Temperature range Operative -32°F +113°F -0°C +45°C
Humidity (non condensing) 35-95%.
Housing Polycarbonate UL94V0 self-extinguishing
Dimensions 2.8 " x 2.5 " x 3.5", 72 x 64 x 90 mm.
Weight 6 oz 210 g.
EMC For industrial environments.
Immunity: EN 61000-6-2.
Emission: EN 61000-6-4.
Configuration PC Configurable, Memory Card

DRR244 Single Channel Wiring Connections

Power Supply DRR244-13ABC-T
Positive Terminal 23
Negative Terminal 24
Output
Current and Voltage
Positive Terminal 12
Negative Terminal 11
Relay 1
Normally Closed Terminal 1
Common Terminal 2
Normally Open Terminal 3
Relay 2
Normally Closed Terminal 6
Common Terminal 5
Normally Open Terminal 4
Modbus RS485 Negative 20
Positive 21
SSR Output Negative 11
Positive 12
Sensor Input
Thermocouples Positive 13
Positive 14
Thermistor Terminal 14
Terminal 15
Potentiometer Terminal 14
Terminal 35
Digital Input
Terminal 16
Terminal 17
Current Transformer
Terminal 18
Terminal 19

DRR244-13ABC-T

DIN Rail PID controller wiring diagram

DRR244 FAQ

What are the advantages of the high-visibility white LEDs on the DRR244?
The high-visibility white LEDs offer clear text message alerts for alarms and status updates, ensuring easy monitoring of your processes at a glance, even in low-light environments.
How can I program the DRR244?
You can program the DRR244 using either the MyPixsys App on your smartphone via NFC/RFID communication or the LabSoftView software on your PC. This dual programming capability offers flexibility and convenience to suit your preferences and application needs.
Is the DRR244 compatible with DIN rail mounting?
Yes, the DRR244 is specifically designed for easy DIN rail mounting, making installation quick and hassle-free in control rooms or MCB setups.
Can I control the DRR244 remotely?
Yes, the DRR244 offers remote setpoint functionality, allowing you to control the device via Modbus RS485 or a 4-20mA input. This provides the flexibility to adjust settings remotely, enhancing convenience and system integration.
How many relays and SSR outputs does the DRR244 have?
The DRR244 comes equipped with 3 relays and 2 SSR outputs, offering versatile control options to meet a wide range of application requirements.
What communication options does the DRR244 support?
The DRR244 supports Modbus RS485 communication, enabling seamless integration into a wide range of systems. This enhances connectivity and interoperability within your network.
Is the DRR244 isolated for enhanced safety?
Yes, the DRR244 features galvanic isolation, ensuring enhanced safety and reliability in your control system by protecting against electrical interference and ensuring stable operation.
Can I use the DRR244 with different types of sensors?
Yes, the DRR244 accommodates inputs from a wide range of sensors, including thermocouples, RTD sensors, thermistors, and process signals. This ensures compatibility with various temperature measurement methods and other process signals.
How does the auto-tuning feature benefit me?
The auto-tuning feature of the DRR244 automatically adjusts control parameters to optimize system performance. This simplifies setup and enhances efficiency by ensuring that the controller operates at peak performance without the need for manual adjustments.
What is the power supply range for the DRR244?
The DRR244 has an extended power supply range of 24 to 230V AC/DC with galvanic isolation. This flexibility allows it to operate reliably even in environments with fluctuating power conditions.
Can the DRR244 be used as a signal converter?
Yes, in addition to its function as a PID controller, the DRR244 can also be used as a signal converter. Its analog output, which is galvanically isolated from the input, can be used for retransmission of process values or setpoints.
What is the significance of the dual PID feature?
The dual PID feature of the DRR244 allows for precise control in heating and cooling applications by using two separate PID control loops. This ensures more accurate and stable temperature control across a wide range of applications.
What are the typical applications for the DRR244?
The DRR244 is ideal for a wide range of industrial applications, including temperature control, process control, and signal conversion. It is commonly used in sectors such as manufacturing, HVAC, and energy management.

In conclusion, the DRR244 DIN-rail mounted PID Controller is the ideal choice for demanding control applications across a wide range of industries. Its advanced features, flexible input and output options, and user-friendly programming make it a reliable and efficient solution for precise process control. Experience unmatched precision, reliability, and efficiency with the DRR244 and elevate your control system to the next level.
