TCT101-2ABC

Panel Mount Counter

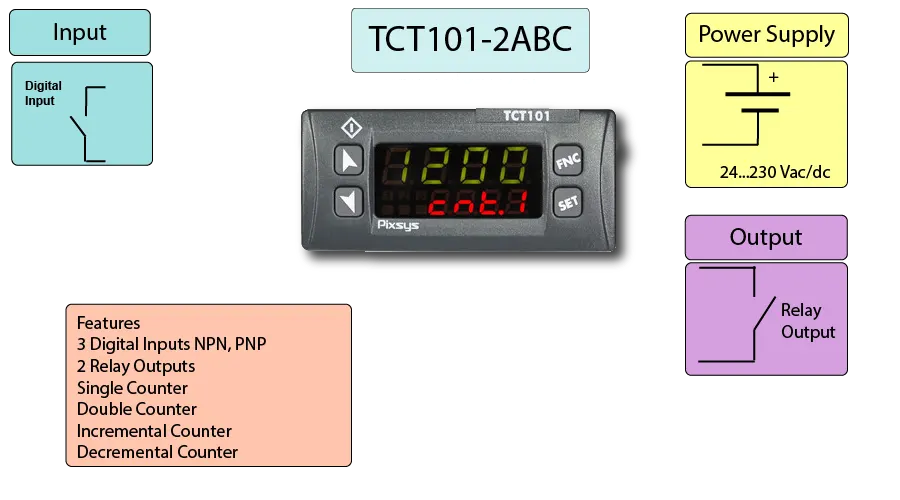

  • Features
    • UL, CE.
    • Counter
    • 2 x 4 Digit Display
    • Memory Card Programmable
    • Output 2 Relays 5 Amp


Panel Mount Counter

Panel Mount Counter

The TCT101-2ABC Panel Mount Counter is a high-precision device designed for accurate counting in various industrial applications. With a 4-digit, 2-line display, it provides clear and reliable readouts, ensuring efficient monitoring and control.

Key Features

  • Multiple Counting Functions: The TCT101-2ABC supports a range of counting functions, including totalizing, batch counting, and preset counting. These functions can be customized to meet specific operational requirements.
  • Dual Relay Outputs: Equipped with two 5A relays, the TCT101-2ABC allows for robust control of external devices and systems.
  • Flexible Counting Settings: Counting periods can be configured in units, tens, hundreds, or thousands, offering precise control over processes.
  • Interrupt Capabilities: The counter can be paused or interrupted via the front touch panel or digital input, providing flexibility in process management.
  • Output Toggle Function: The unit can toggle outputs on and off over a set period, enhancing its utility in various applications.
  • Multiple Operating Modes: The TCT101-2ABC can be configured in five distinct modes: Totalizer, Batch Counter, Preset Counter, Quadrature Counter, and Rate Indicator. Each mode allows independent ON-OFF time settings.
  • Programming Options: Settings can be programmed using the onboard keyboard or via Labsoftview software. Memory cards are available for quick duplication of settings across multiple devices.
  • Versatile Configuration: The TCT101-2ABC can be configured as a single or double counter, incremental or decremental counter, with the option of setting by an external potentiometer.

Other options in the TCT101 series are:
The TCT101-1ABC Process Timer supports a range of timer functions, including Timer ON, Timer OFF, Pause Timer, Proportional Timer, and Oscillator.
The TCT101-3ABC Process Tachometer can measure frequencies up to 100kHz, ensuring precise monitoring of high-speed processes.
The TCT101-4ABC-T Modbus Timer, Modbus Counter, Modbus Tachometer is a combination containing a timer, counter, and tachometer and it also has a Modbus RS485 output.

TCT101-2ABC Specifications

Digital Input 3x selectable as NPN, PNP, TTL on high/low level, rising/falling edge.
Potentiometer Input 5/10 K Ohms.
Counter Input Selection: Start, Stop, Hold, Reset, Wait
Counter: Programmable in tens, hundreds, thousands.
Output
Relays Up to 2 Relays 5 A 250V AC
Display: 4 digits, 0.4" green 4 digits, 0.3" red.
Power Supply 24 to 230Vac/Vdc.
Power Consumption 3VA max.
Temperature Range Operative-32°F +113°F -0°C +45°C
Humidity (non condensing) 35-95%.
Housing Polycarbonate UL94V2 self-extinguishing
Dimensions 3 x 1 3/8 " x 2 1/8", 35 x 77 x 53 mm.
Weight 4 oz 100 g.
EMC For industrial environments.
Immunity: EN 61000-6-2.
Emission: EN 61000-6-4.
Configuration PC Configurable, Memory Card
Data Protection:n PC Configurable, Memory Card

TC101-2ABC Wiring Connections

ATR101-2ABC
Power Supply
Live Terminal 1
Negative Terminal 2
Aux Power 24 V Terminal 9
0 V Terminal 8
Counter Input 1 Terminal 12
Counter Input 2 Terminal 11
Relay 1
Common Terminal 4
Normally Open Terminal 5
Normally Closed Terminal 3
Relay 2
Common Terminal 6
Normally Open Terminal 7

TC101-2ABC

tct101-2abc wiring diagram
The TCT101-2ABC Panel Mount Counter is an ideal solution for precise counting requirements in industrial and automation applications, ensuring reliability, flexibility, and ease of use.
