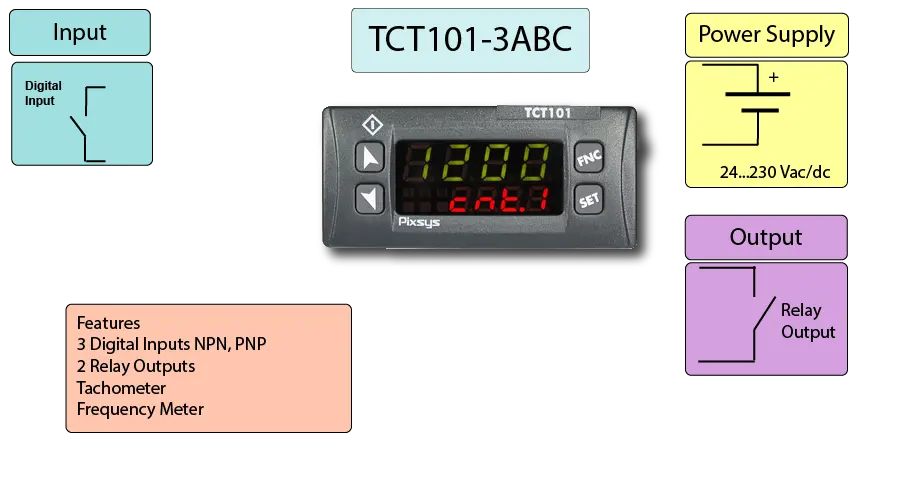

TCT101-3ABC

Process Tachometer
  • Features
    • UL, CE
    • Tachometer
    • 2 x 4 Digit Display
    • Memory Card Programmable
    • Output 2 Relays 5 Amp


Process Tachometer

Process Timer

The TCT101-3ABC Process Tachometer is a panel mount device designed for accurate measurement of frequencies up to 100kHz. It is compatible with encoders and 2 or 3 wire proximity switches, making it suitable for a wide range of industrial applications.

Key Features

  • High-Frequency Measurement: The TCT101-3ABC can measure frequencies up to 100kHz, ensuring precise monitoring of high-speed processes.
  • Compatibility: Compatible with encoders and 2 or 3 wire proximity switches, providing flexibility in various applications.
  • Maximum and Minimum Frequency Storage: The device can store the maximum and lowest frequency values, offering valuable data for process analysis.
  • Frequency Counter: Features a frequency counter for Encoder Push-Pull/Line-Driver TTL, mono- or bi-directional up to 100kHz.
  • Dual Relay Outputs: Equipped with two 5A relays, the TCT101-3ABC allows for robust control of external devices and systems.
  • Flexible Display Options: The 4-digit, 2-line display offers clear and reliable readouts, ensuring efficient monitoring and control.
  • Programming Options: Settings can be programmed using the onboard keyboard or via Labsoftview software. Memory cards are available for quick duplication of settings across multiple devices.
Other options in the TCT101 series are:
The TCT101-1ABC Process Timer supports a range of timer functions, including Timer ON, Timer OFF, Pause Timer, Proportional Timer, and Oscillator.
The TCT101-2ABC Panel Mount Counter supports a range of counting functions, including totalizing, batch counting, and preset counting.
The TCT101-4ABC-T Modbus Timer, Modbus Counter, Modbus Tachometer is a combination containing a timer, counter, and tachometer and it also has a Modbus RS485 output.

TC101-3ABC Specifications

Digital Input 3x selectable as NPN, PNP, TTL on high/low level, rising/falling edge.
Potentiometer Input 5/10 K Ohms.
Frequency Input Selection: Start, Stop, Hold, Reset, Wait
Frequency measurement: Up to 100kHz.
Output
Relays Up to 2 Relays 5 A 250V AC
Display: 4 digits, 0.4" green 4 digits, 0.3" red.
Power Supply 24 to 230Vac/Vdc.
Power Consumption 3VA max.
Temperature Range Operative-32°F +113°F -0°C +45°C
Humidity (non condensing) 35-95%.
Housing Polycarbonate UL94V2 self-extinguishing
Dimensions 3 x 1 3/8 " x 2 1/8", 35 x 77 x 53 mm.
Weight 4 oz 100 g.
EMC For industrial environments.
Immunity: EN 61000-6-2.
Emission: EN 61000-6-4.
Configuration PC Configurable, Memory Card
Data Protection:n PC Configurable, Memory Card

TC101-3ABC Wiring Connections

ATR101-3ABC
Power Supply
Live Terminal 1
Negative Terminal 2
Aux Power 24 V Terminal 9
0 V Terminal 8
Tachometer Input 1 Terminal 12
Tachometer Input 2 Terminal 11
Tachometer Input 3 Terminal 10
Relay 1
Common Terminal 4
Normally Open Terminal 5
Normally Closed Terminal 3
Relay 2
Common Terminal 6
Normally Open Terminal 7

TC101-3ABC

tct101-3abc wiring diagram

The TCT101-3ABC Process Tachometer is an ideal solution for precise frequency measurement requirements in industrial and automation applications, ensuring reliability, flexibility, and ease of use.
